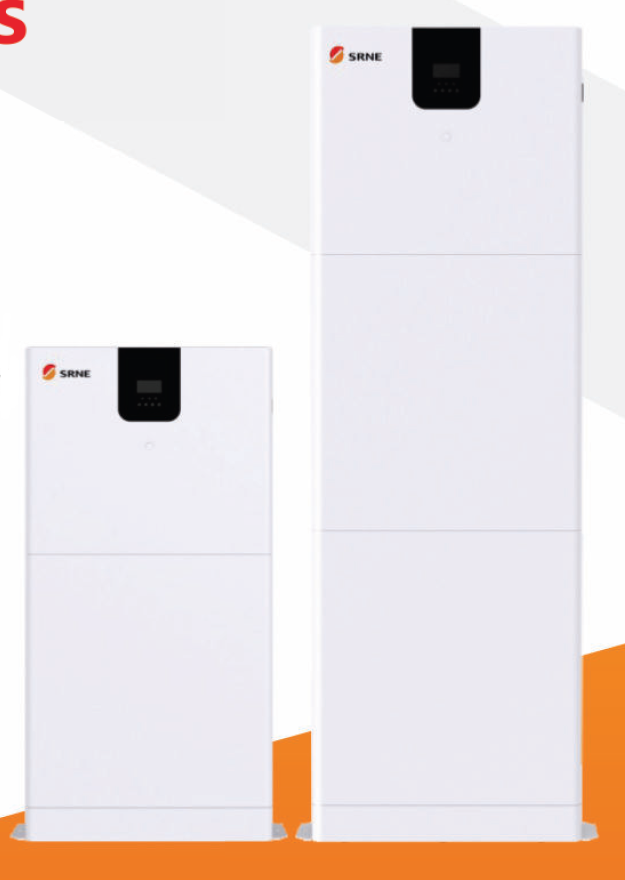

Available Models

• SR-EOV24-5.0S-S1

• SR-EOV24-10.0S-S1

• SR-EOV24-5.0U-S1

• SR-EOV24-10.0U-S1

  2. Battery Technical Specifications

  Item	5.0 kWh Model	10.0 kWh Model
  Battery Model	SR-EOV24-5.0A-E1	SR-EOV24-10.0A-E1
  Number of Batteries	1	2
  Battery Energy	5.12 kWh	10.24 kWh
  Battery Capacity	200 Ah	400 Ah
  Battery Type	LiFePO₄ (Lithium Iron Phosphate)	LiFePO₄
  Rated Voltage	25.6 V	25.6 V
  Working Voltage Range	22.4 – 28.8 V	22.4 – 28.8 V
  Maximum Charging Current	150 A	150 A
  Maximum Discharging Current	150 A	150 A
  Depth of Discharge (DoD)	80%	80%
  Designed Life Span	≥ 5000 cycles	≥ 5000 cycles
  Weight	100 kg	170 kg
  Dimensions (L × D × H)	1190 × 600 × 184 mm	1800 × 600 × 184 mm

  ---

  3. Inverter Technical Specifications

  Item	S Series	U Series
  Inverter Model	SR-EOV24-3.5S-C1	SR-EOV24-3.5U-C1

  ---

  4. PV Charging (Solar Input)

  • Solar Charging Type: MPPT

  • Maximum PV Input Power: 4000 W

  • PV Charging Current Range: 0 – 80 A

  • PV Operating Voltage Range: 120 – 500 V

  • MPPT Voltage Range: 120 – 450 V

  ---

  5. AC Charging (Grid Input)

  S Series

  • Maximum AC Charging Power: 2240 W

  • AC Charging Current Range: 0 – 80 A

  • Rated Input Voltage: 220 / 230 Vac

  • Input Voltage Range: 90 – 280 Vac

  U Series

  • Maximum AC Charging Power: 1120 W

  • AC Charging Current Range: 0 – 40 A

  • Rated Input Voltage: 110 / 120 Vac

  • Input Voltage Range: 90 – 140 Vac

  ---

  6. AC Output

  Item	S Series	U Series
  Rated Output Power	3500 W	3500 W
  Maximum Output Current	30 A	40 A
  Output Frequency	50 Hz	60 Hz
  Overload Current	45 A	45 A

  ---

  7. Battery Inverter Output

  • Rated Output Power: 3500 W

  • Maximum Peak Power: 6000 VA

  • Power Factor: 1

  • Rated Output Voltage:

    • S Series: 230 Vac

    • U Series: 120 Vac

  • Automatic Transfer Time: < 15 ms

  • Total Harmonic Distortion (THD): < 3%

  ---

  8. General Data

  • Communication Interfaces: RS485 / CAN / WiFi

  • Storage Time / Temperature:

    • 6 months @ 25°C

    • 3 months @ 35°C

    • 1 month @ 45°C

  • Charging Temperature Range: 0 – 45°C

  • Discharging Temperature Range: -10 – 45°C

  • Operating Humidity: 5% – 85% (RH)

  • Maximum Operating Altitude: < 2000 m

  • Cooling Method: Forced-air cooling

  • Noise Level: ≤ 60 dB(A)

  • Ingress Protection Rating: IP20

  • Recommended Installation Environment: Indoor

  • Installation Method: Vertical (Floor-standing)

  ---

  9. Certifications

  • UN38.3

  • MSDS

  • EN50530

  • EN55024

  • EN61000-3-2

  • EN61000-3-3
